Continuous Metallization on PET and OPP Films with Capacitor Vacuum Metallizer

Name: Continuous Metallization on PET and OPP Films with Capacitor Vacuum Metallizer
Brand: Hefei Dongsheng Machinery Technology Co., Ltd
SKU: MCA-950U
Price: 506,900.00 USD
Availability: InStock

Подробная информация о продукции

Place of Origin: China

Фирменное наименование: DST

Сертификация: CE Rosh

Model Number: MCA-950U

Условия оплаты и доставки

Minimum Order Quantity: 1set

Цена: Based on Specification

Packaging Details: wooden case

Delivery Time: around 5 months

Payment Terms: T/T

Supply Ability: Five sets in 6 months

Лучшая цена

Свяжитесь сейчас

Спецификации

Описание

Спецификации

Выделить:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  capacitor vacuum metallizer for PET films, OPP film metallization machine, vacuum metallizer with continuous coating


Substrate:	CPP,PET,BOPP	Substrate Width:	max.1300mm
Substrate Thickness:	0.1μm-1.6μm	Coating material:	Al.only;Zn.,Al.etc
Heating method:	Evaporation	Power supply:	A C380V 50Hz + PE
Coating speed:	max. 21 m/s	Core diameter (inside):	75 mm or 13 mm
Core material:	metal, plastic, impregnated paper etc	Core Components:	PLC, Engine, Motor,etc
Color:	customized	Coating Film:	BOPP/PET/CPP etc
Type:	Coating Production Line

Substrate:	CPP,PET,BOPP
Substrate Width:	max.1300mm
Substrate Thickness:	0.1μm-1.6μm
Coating material:	Al.only;Zn.,Al.etc
Heating method:	Evaporation
Power supply:	A C380V 50Hz + PE
Coating speed:	max. 21 m/s
Core diameter (inside):	75 mm or 13 mm
Core material:	metal, plastic, impregnated paper etc
Core Components:	PLC, Engine, Motor,etc
Color:	customized
Coating Film:	BOPP/PET/CPP etc
Type:	Coating Production Line

Описание

Continuous Metallization on PET and OPP Films with Capacitor Vacuum Metallizer

Product Specifications

Attribute	Value
Substrate	CPP, PET, BOPP
Substrate Width	max. 1300mm
Substrate Thickness	0.1μm-1.6μm
Coating material	Al. only; Zn., Al. etc
Heating method	Evaporation
Power supply	AC 380V 50Hz + PE
Coating speed	max. 21 m/s
Core diameter (inside)	75 mm or 13 mm
Core material	metal, plastic, impregnated paper etc
Core Components	PLC, Engine, Motor, etc
Color	customized
Coating Film	BOPP/PET/CPP etc
Type	Coating Production Line

Product Overview

MCA-650 CNC High Vacuum Metallizing Machine adopts internationally advanced technology design, enabling continuous one-sided aluminum and aluminum/zinc metallization on plastic films such as PET and OPP, to form the desired metallized film products.

Key Advantages

High Uniformity

The powerful, robust evaporation source with a staggered ceramic boat arrangement provides excellent coating uniformity, coating thickness uniformity below ±5% is our guarantee.

High Quality

Substrates, in particular low tension or heat sensitive films such as CPP and PE, benefit from our Free Span Metallizer. Because our design avoids large thermal gradient between the cooled process drum and the hot film surface, and reduces the radiant heat, most intractable problems like light line, wrinkle, spatter and micro-cracking are solved. Consequently, both functional and aesthetic performances of coated film get improved.

Short Waiting Time

Inverter Frequency Control and the short pump tube in the Vacuum System minimizes the time spent in pumping; There is no edge shields to adjust and clean, as well as no drum to clean, these advantages increase the productive time dramatically.

Technical Specifications

Parameter	Value
Substrate	CPP, PET, PI, etc.
Substrate Width	max. 1200mm
Substrate thickness	0.1μm-1.5μm
Heating method	Evaporation boat
Power supply	AC380V 50Hz + PE
Coating material	metal, plastic, impregnated paper
Core diameter (inside)	76 mm or 152 mm
Coating material	Al. only; Zn., Al.
Kind of coating	One side

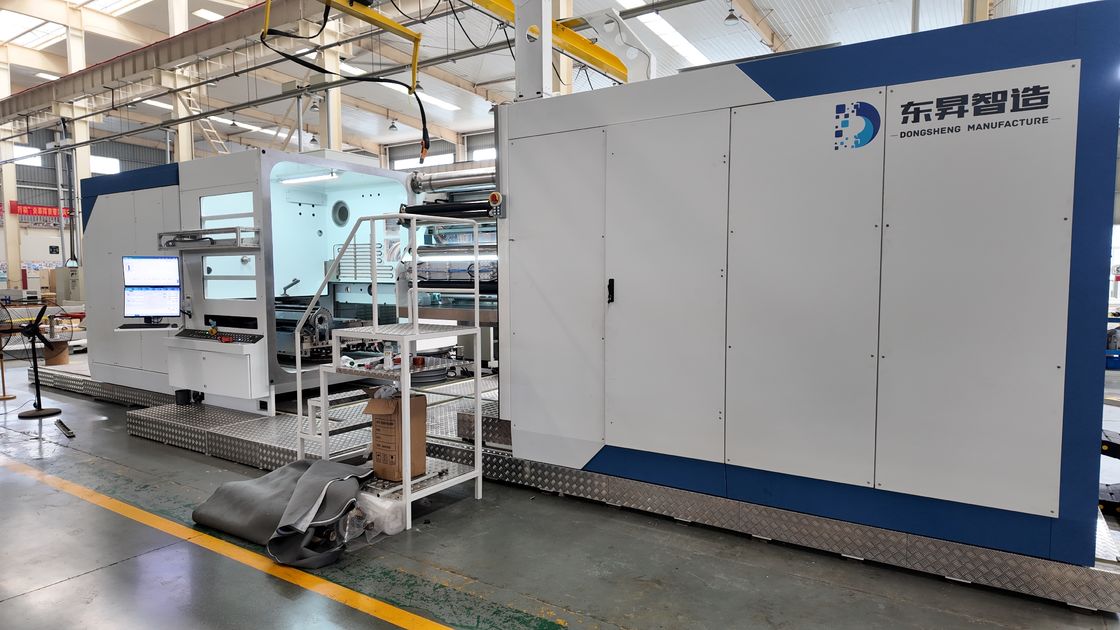

Product Images

Key Features

High precision winding-system: Digital winding electronic, unwinding with transverse oscillation possible. Two different rewind modes.
Spreader roller: Metal straight spreader rollers for uniform tension across the total web width and uniform coating & rewinding.
Combined mode evaporation system:
- ALUMINIUM SOURCE: Thermal evaporator for resistance heated inter metallic composite. Continuous aluminium wire feed system which can be observation conveniently.
- ZINC SOURCE: Radiation heated furnace for zinc evaporation. Nozzle plates for uniform or reinforced edge coating.
Advanced oil masking system: For the production of unmetallised stripes in web direction. Multi-position high precision remote controlled adjustment with digital indication on the touch screen.
Precision process control: Industry PC control system based on windows operation with BECKHOFF TFT touch screen. Ethernet connection for easy remote diagnostic, data logging and software update with safety interlocking.

Applications

Packaging & Delivery

Prompt delivery
Professional logistic agent
Well-trained and disciplined packing team
After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

Competitive Advantages

We offer high quality products at competitive price
Customs clearance is guaranteed
Good after-sale service
Flexible payment terms
With excellent products and efficient services, we are well known both at home and abroad

Our Customers

Frequently Asked Questions

Q: Is Dongsheng a factory or trading company?

A: Dongsheng is a factory.

Q: Where is your factory located? Can I visit it before I place an order?

A: Our factory is located in Hefei, Anhui, China; Welcome to visit our factory.

Q: How about the warranty and after-sale service?

A: We provide 12 months warranty and lifetime technical support for all machinery. The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.

Q: Payment Terms

A: TT 30% down payment, 70% before shipment.

Q: Machine installation

A: We could assign the technician to the place for the on-site installation if requested by the purchaser.

Q: How do you control your quality?

A: Each process will be tested by our inspection department to make sure the product quality.
